| Maximum capacity | kW | 7,90 kW |
| Reference | CS-HZ35XKE + CU-HZ35XKE |
| Heating capacity (Nominal) | kW | 4,20 |
| Heating capacity (Min) | kW | 0,85 |
| Heating capacity (Max) | kW | 7,90 |
| COP (1) | W/W | 5,00 |
| Heating capacity at -7°C (2) | kW | 5,12 |
| COP at -7°C (1) | W/W | 2,56 |
| Heating capacity at -15°C (2) | kW | 5,00 |
| COP at -15°C (1) | W/W | 2,53 |
| Heating capacity at -20°C (2) | kW | 4,30 |
| COP at -20°C (1) | W/W | 2,36 |
| Heating capacity at -25°C (2) | kW | 3,70 |
| COP at -25°C (1) | W/W | 2,20 |
| SCOP (3) | 5,30 A+++ |
| Pdesign at -10°C | kW | 4,00 |
| Input power heating (Nominal) | kW | 0,84 |
| Input power heating (Min) | kW | 0,17 |
| Input power heating (Max) | kW | 2,25 |
| Annual energy consumption heating (4) | kWh/a | 1.057 |
| Cooling capacity (Nominal) | kW | 3,50 |
| Cooling capacity (Min) | kW | 0,85 |
| Cooling capacity (Max) | kW | 4,00 |
| SEER (3) | 8,50 A+++ |
| Pdesign (cooling) | kW | 3,50 |
| Input power cooling (Nominal) | kW | 0,80 |
| Input power cooling (Min) | kW | 0,17 |
| Input power cooling (Max) | kW | 0,99 |
| Annual energy consumption cooling (4) | kWh/a | 144 |

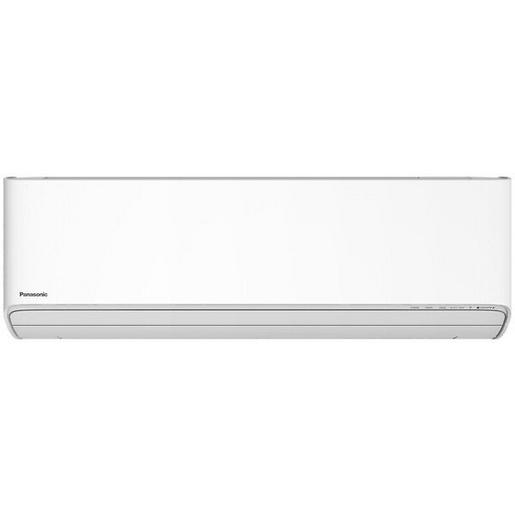

| Indoor unit | CS-HZ35XKE |
| Indoor power source | V | 230 |
| Indoor air flow (Heat) | m³/min | 15,7 |
| Indoor air flow (Cool) | m³/min | 14,1 |
| Moisture removal volume | L/h | 2,0 |
| Indoor sound pressure (Heat -Hi) (5) | dB(A) | 45 |
| Indoor sound pressure (Heat -Lo) (5) | dB(A) | 25 |
| Indoor sound pressure (Heat -Q-Lo) (5) | dB(A) | 18 |
| Indoor sound pressure (Cool -Hi) (5) | dB(A) | 44 |
| Indoor sound pressure (Cool -Lo) (5) | dB(A) | 28 |
| Indoor sound pressure (Cool -Q-Lo) (5) | dB(A) | 20 |
| Indoor dimension (Height) | mm | 295 |
| Indoor dimension (Width) | mm | 870 |
| Indoor dimension (Depth) | mm | 229 |
| Indoor net weight | kg | 11 |
| nanoe X Generator | Mark 2 |

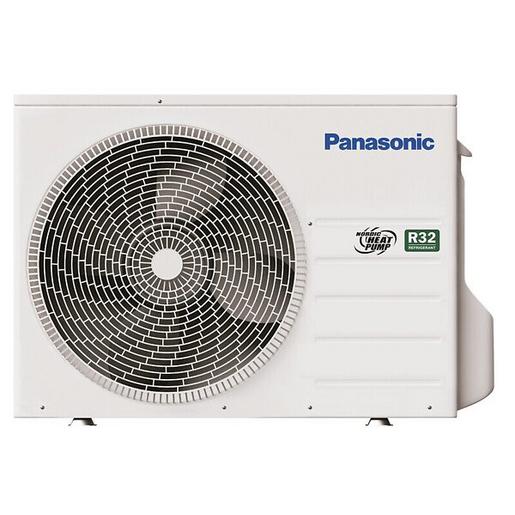

| Outdoor unit | CU-HZ35XKE |
| Outdoor air flow (Heat) | m³/min | 34,4 |
| Outdoor air flow (Cool) | m³/min | 34,4 |
| Outdoor sound pressure (Heat -Hi) (5) | dB(A) | 50 |
| Outdoor sound pressure (Heat -Lo) (5) | dB(A) | 47 |
| Outdoor sound pressure (Cool -Hi) (5) | dB(A) | 48 |
| Outdoor sound pressure (Cool -Lo) (5) | dB(A) | 45 |
| Outdoor dimension (Height) (6) | mm | 622 |
| Outdoor dimension (Width) (6) | mm | 824 |
| Outdoor dimension (Depth) (6) | mm | 299 |
| Outdoor net weight | kg | 34 |
| Pipe diameter (Liquid) | Inch (mm) | 1/4 (6,35) |
| Pipe diameter (Gas) | Inch (mm) | 3/8 (9,52) |
| Pipe length range | m | 3 ~ 20 |
| Elevation difference (in/out) (7) | m | 10 |
| Pipe length for additional gas | m | 7,5 |
| Additional gas amount | g/m | 10 |
| Refrigerant (R32) / CO2 Eq. | kg / T | 1,06 / 0,716 |
| Operating range (Heat - Min) | °C | -25 |
| Operating range (Heat - Max) | °C | +24 |
| Operating range (Cool - Min) | °C | +16 |
| Operating range (Cool - Max) | °C | +43 |
